PRODUCTS
We will become the emerging industry that continuously develops
the technology and improves the product quality.
SPECIAL TORCH

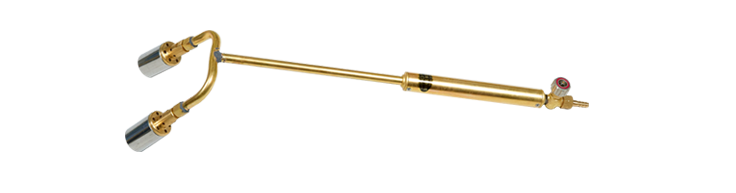

SH302
|
LPG Burner (One-Flame / Two-Flame)
One-Flame
Two-Flame

Type Length
(mm)		 Weight
(g)		 LPG
(Mpa)		 Flow Quantity
LPG (Mpa)
SH303 (One-Flame) 630 830 0.03 600
SH302 (Two-Flame) 630 1,145 0.03 600

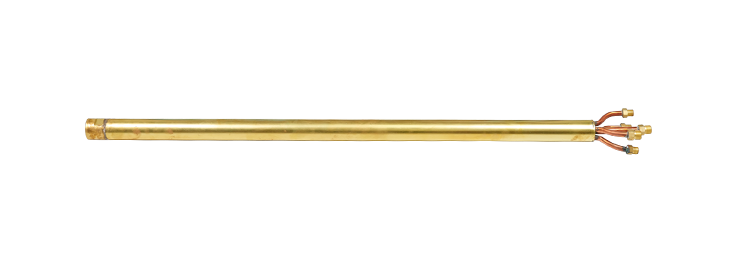

SH317
|
TCM Burner

Length
(mm)		 Weight
(g)		 Oxygen Pressure
(Mpa)		 LPG Pressure
(Mpa)
800~1,400 6,200 1.2 0.3

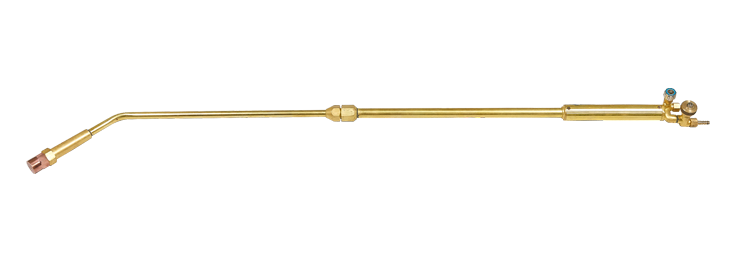

SH301
|
C Type Heating Torch

Length
(mm)		 Weight
(g)		 Gas Pressure(Mpa) Flow Quantity
LPG (Mpa) O2 (LPG)L/H (O2)L/H
1,430 2,500 0.6~0.8 0.8 10,000~12,000 30,000~40,000

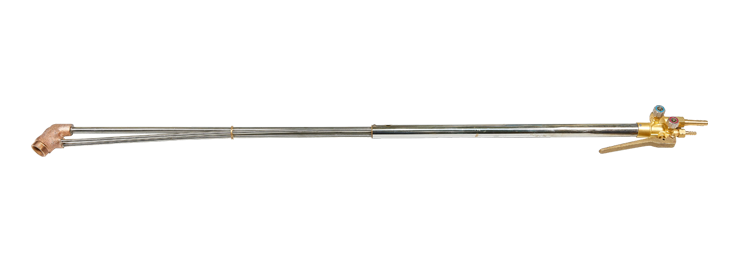

SH306
|
Scarfing Torch

Length
(mm)		 Weight
(g)		 Scarfing Width
(mm)		 Kind of Tip O2
(Mpa)		 LPG
(Mpa)
1,300 3,200 70~100 1 0.8~1.2 0.05~0.07

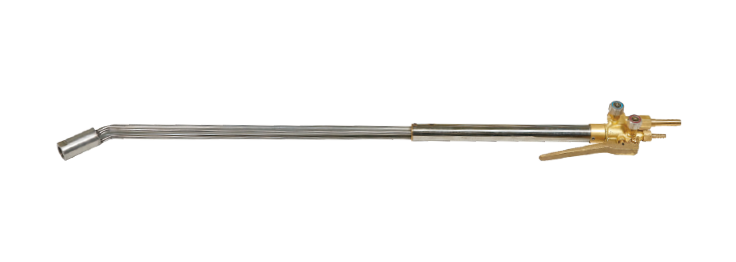

SH310S
|
Hand Cutter
Length : 1,100~1,800mm
Tip No. Cutting
Capacity		 Oxygen Pressure
(Mpa)		 Gas Pressure
(Mpa)
2~10 100~400 0.6~1.2 0.04~0.07

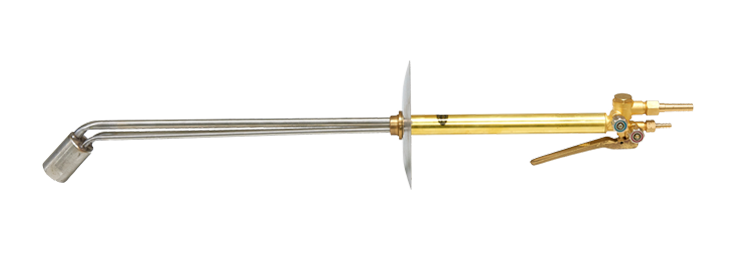

SH310
|
Hand Cutter
Length : 1,100~1,800mm
Tip No. Cutting
Capacity		 Oxygen Pressure
(Mpa)		 Gas Pressure
(Mpa)
7,8,9 200~600m/m 0.8~1.2 0.05~0.08
SH312
|
Hand Cutter
Length : 1,800~3,500mm
Tip No. Cutting
Capacity		 Oxygen Pressure
(Mpa)		 Gas Pressure
(Mpa)
7,8,9 200~600m/m 0.8~1.2 0.05~0.08
