PRODUCTS
We will become the emerging industry that continuously develops
the technology and improves the product quality.

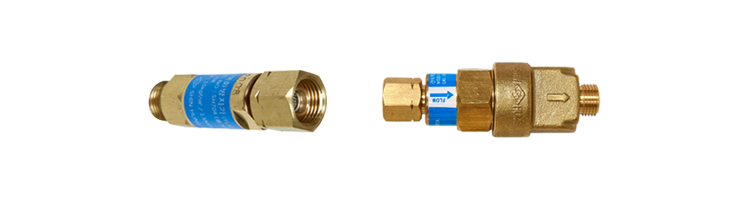

FLASHBACK ARRESTOR
SH704, 706
|
Regulator Type
SH704
SH706

Model GAS Usable Pressure
(Mpa)		 Flow Capacity
(Nm3/h)		 Length
(mm)		 Weight
(g)
SH704 Oxygen 0.1~0.9 15 75 130
SH706 Oxygen 0.1~0.9 25 105 400

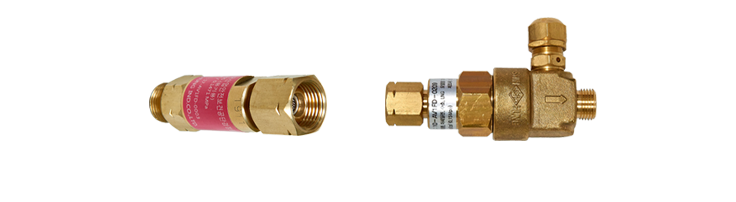

SH705, 707
|
Regulator Type
SH705
SH707

Model GAS Usable Pressure
(Mpa)		 Flow Capacity
(Nm3/h)		 Length
(mm)		 Weight
(g)
SH705 LPG 0.01~0.13 3 75 130
SH707 LPG/Acetylene 0.01~0.13 5 105 440

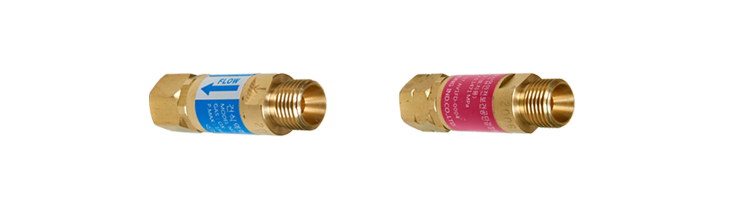

SH712, 713
|
Torch Type
SH713
SH712

Model GAS Usable Pressure
(Mpa)		 Flow Capacity
(Nm3/h)		 Length
(mm)		 Weight
(g)
SH713 Oxygen 0.2~0.9 10 65 100
SH712 LPG/LNG 0.02~0.1 2 65 100

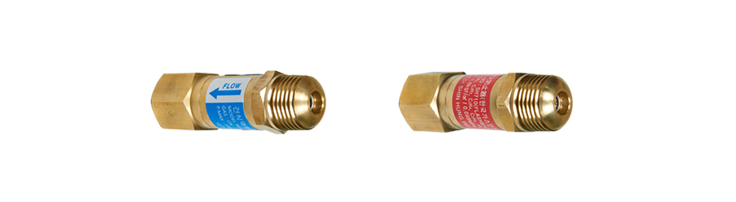

SH710, 711
|
Gas Manifold Type
SH711
SH710

Model GAS Usable
Pressure
(Mpa)		 Flow
Capacity
(Nm3/h)		 Type Length
(mm)		 Weight
(g)
SH711 Oxygen 0.2~0.9 15 10A,
15A		 77 175
SH710 LPG/Acetylene 0.02~0.1 3 77 175

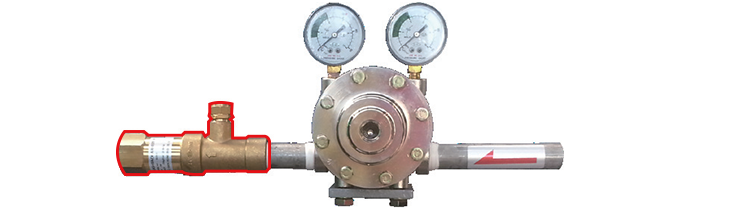

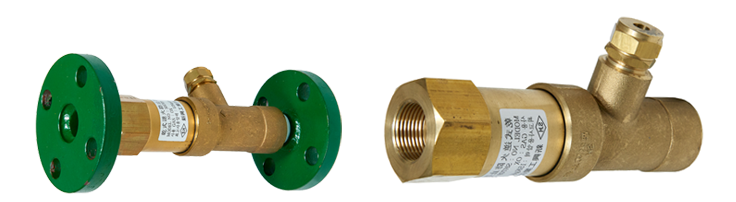

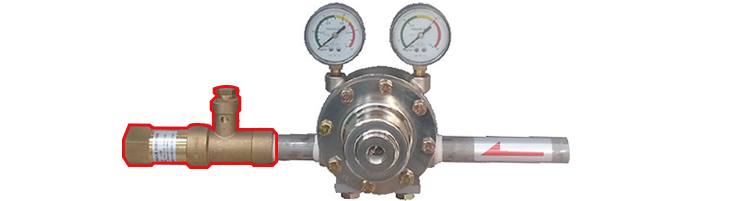

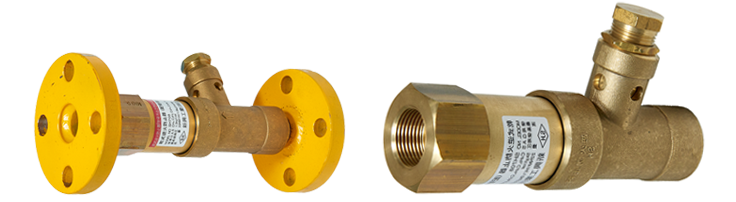

SH709, 708
|
Gas Piping Type
Flange type Screw type
SH709



Flange type Screw type
SH708

Model GAS Usable Pressure
(Mpa)		 Flow Capacity
(Nm3/h)		 Type Length
(mm)		 Weight
(g)
SH709 Oxygen 1.0 320 15A
20A
25A		 160 1,330
SH708 Acetylene / LPG / LNG 0.1 20 15A
20A
25A		 160 1,300
SH709
SH508
SH708
SH509
